Shark-Loc™ - Tray/Shelf

If you have already made a racking system for your modular tool organizers and struggle with keeping your slides closed, this is the perfect solution for you.

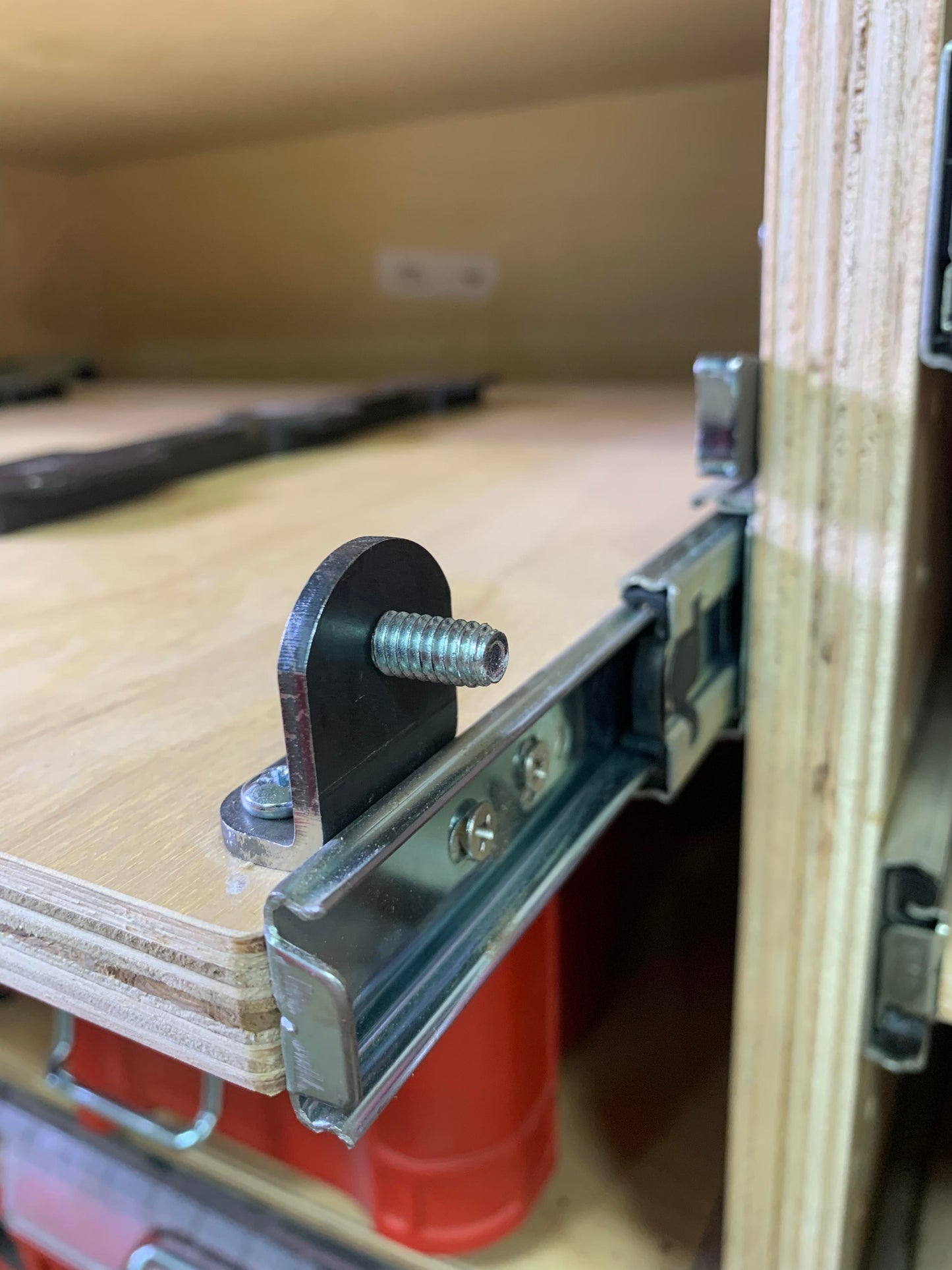

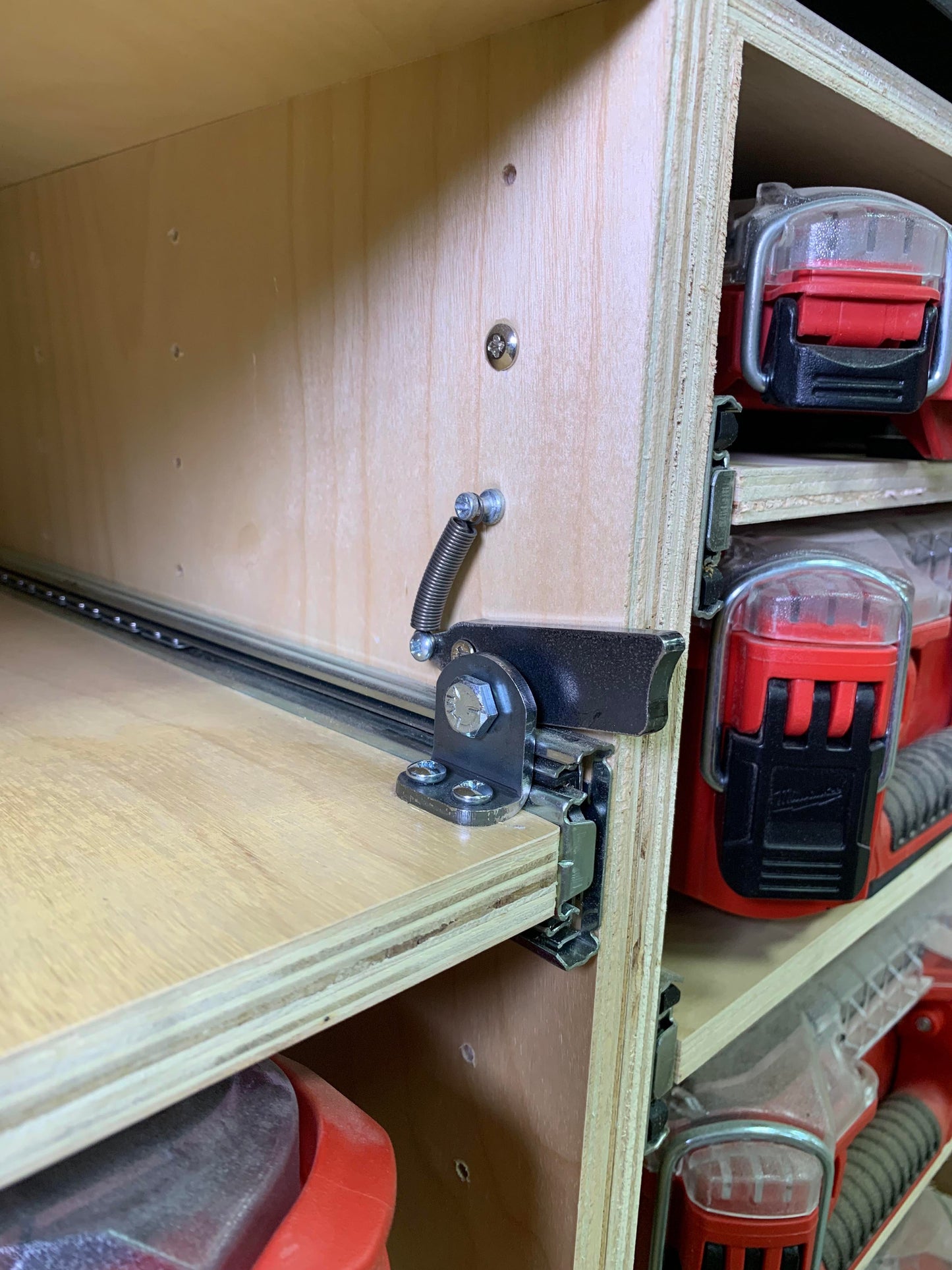

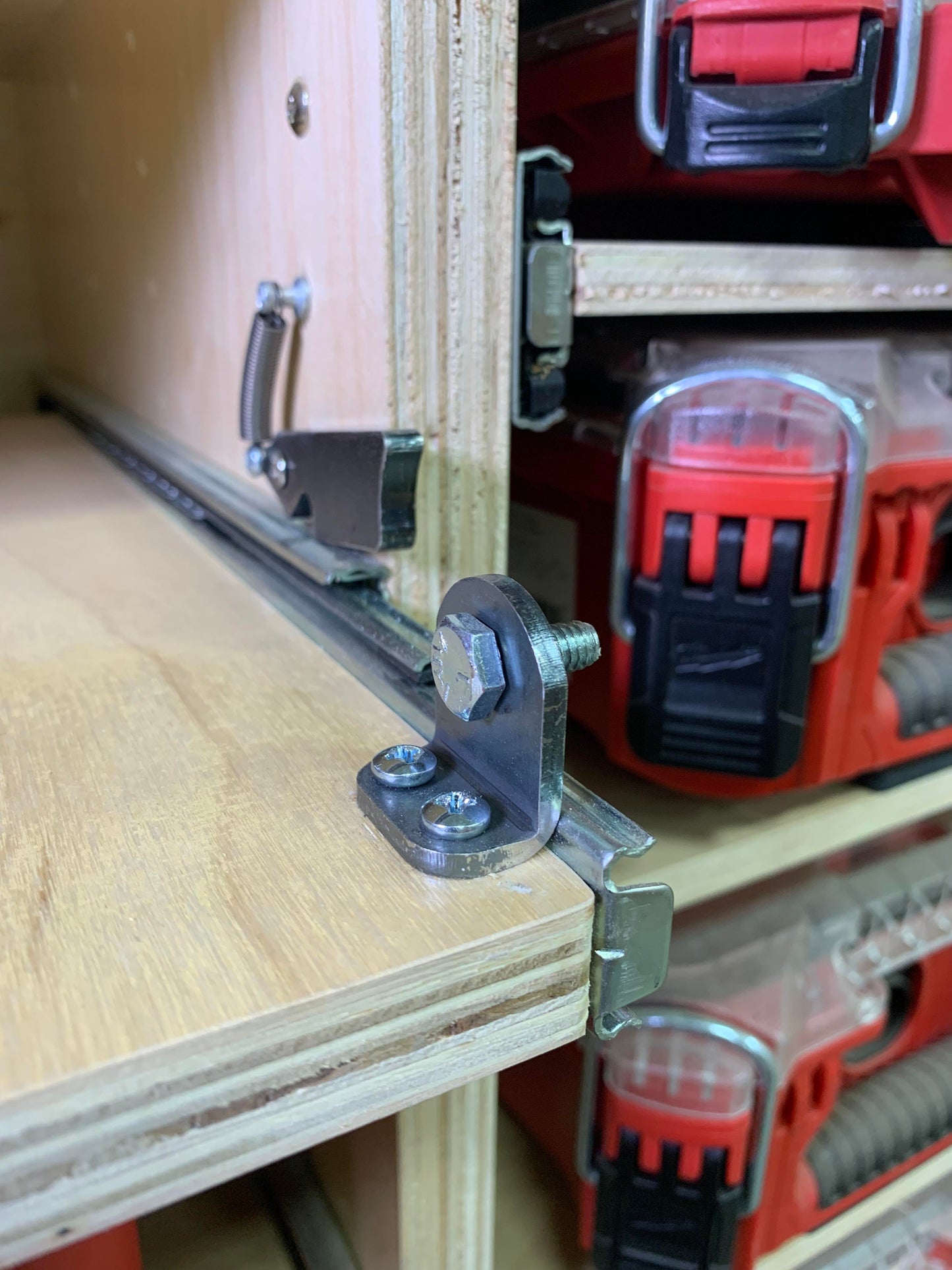

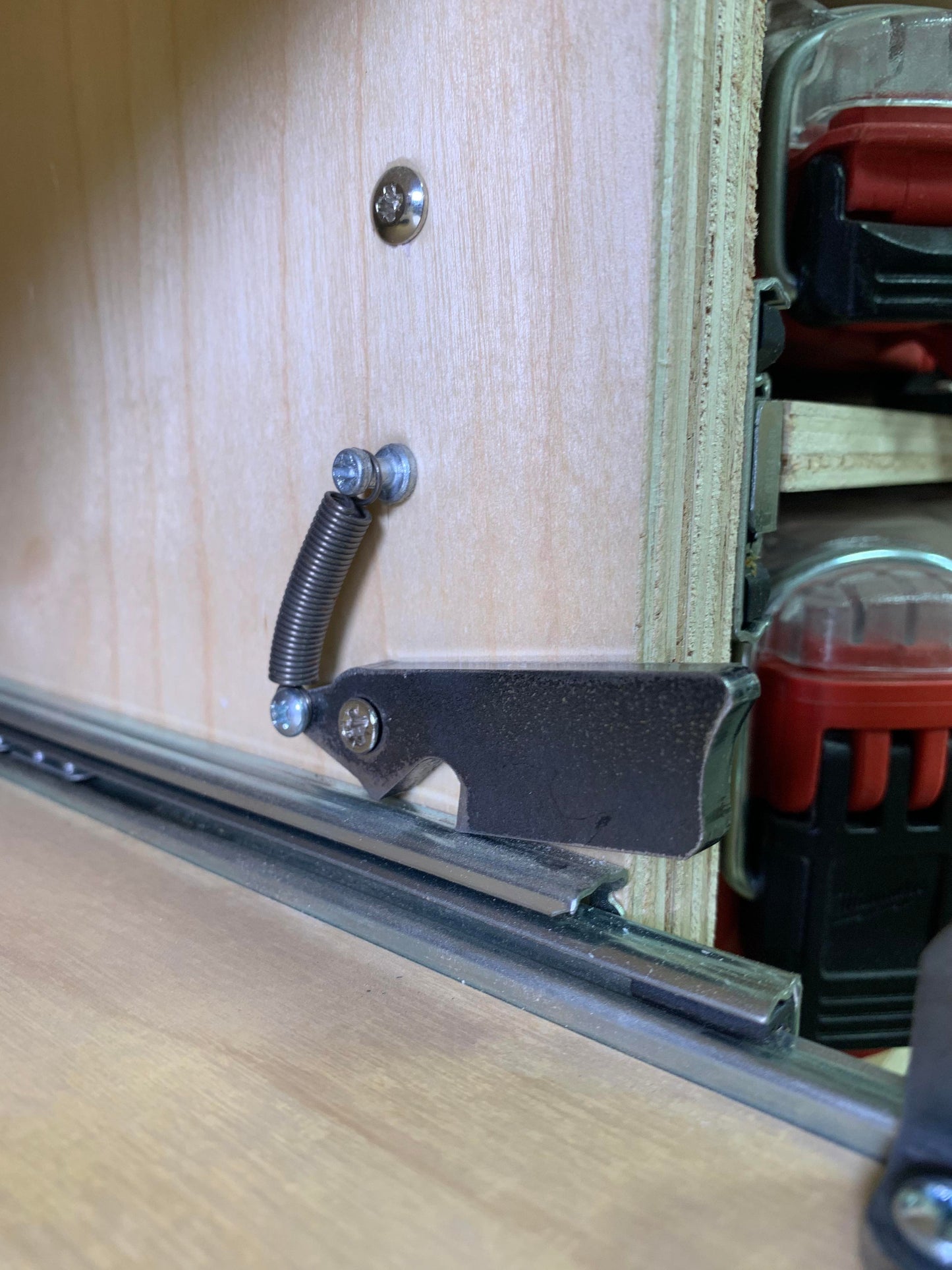

We created the Shark-Loc™ to keep trays, drawers, and other pull-out units that use side-mounted drawer slides. The Shark-Loc™ arm mounts to a 5mm hole that is drilled into the side. The angled bracket with the locking stud is secured to the 1/2" tray with two pan head screws. Using the vertical adjustment slot in the drawer slide allows you to tune the stud location by moving the shelf up or down on the slide hardware.

Stressing the installation? Don't! We include one acrylic marking template with each order that locates the 5mm hole and the two holes for the pan head screws. Extremely simple! Check out the pictures to see the template.

Install template orientation Instructions will be included.

Included:

• Shark-Loc™ Arm

• Shark-Loc­™ Angled Stud Assembly

• 1 - 5mm system screw

• 2 - Pan head screws

• *One installation template with each order
