STV Racking

Combo-Unit: Trays and Drawers

Combo-Unit: Trays and Drawers

Regular price $925.00 USD
Regular price Sale price $925.00 USD
Sale Sold out
Laser
Tool Brand

Assembly Video Here

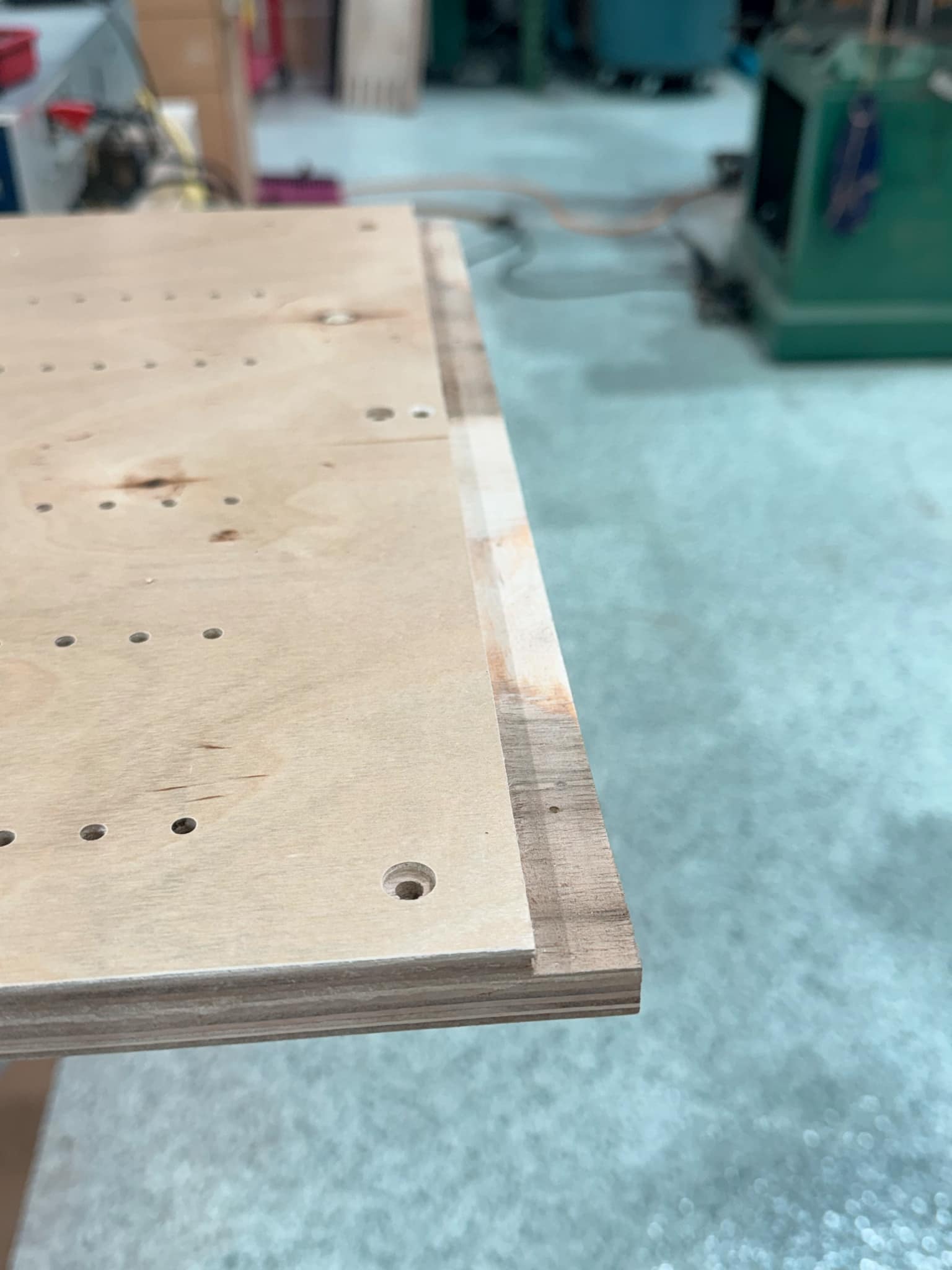

Is your work van or trailer disorganized? Do you have tool organizers piled on the floor? It is time to organize your life with the SVT Racking (shop/van/trailer) system. You are utilizing 5mm system holes spaced precisely to maximize your ability to store your tool organizers efficiently.

Each system is shipped flat packed and assembled by the customer. The product packing sheet is included with a QR code to the assembly video (link above). The plywood can quickly be assembled in under an hour with a little wood glue and your choice of mechanical fastener. If you want to keep it looking clean, use some clamps and allow the joint to dry. Our preference is 18 gauge brad nails to connect the parts. ROO Glue, Titebond Melamine Glue, or any glue designed for melamine or prefinished material.

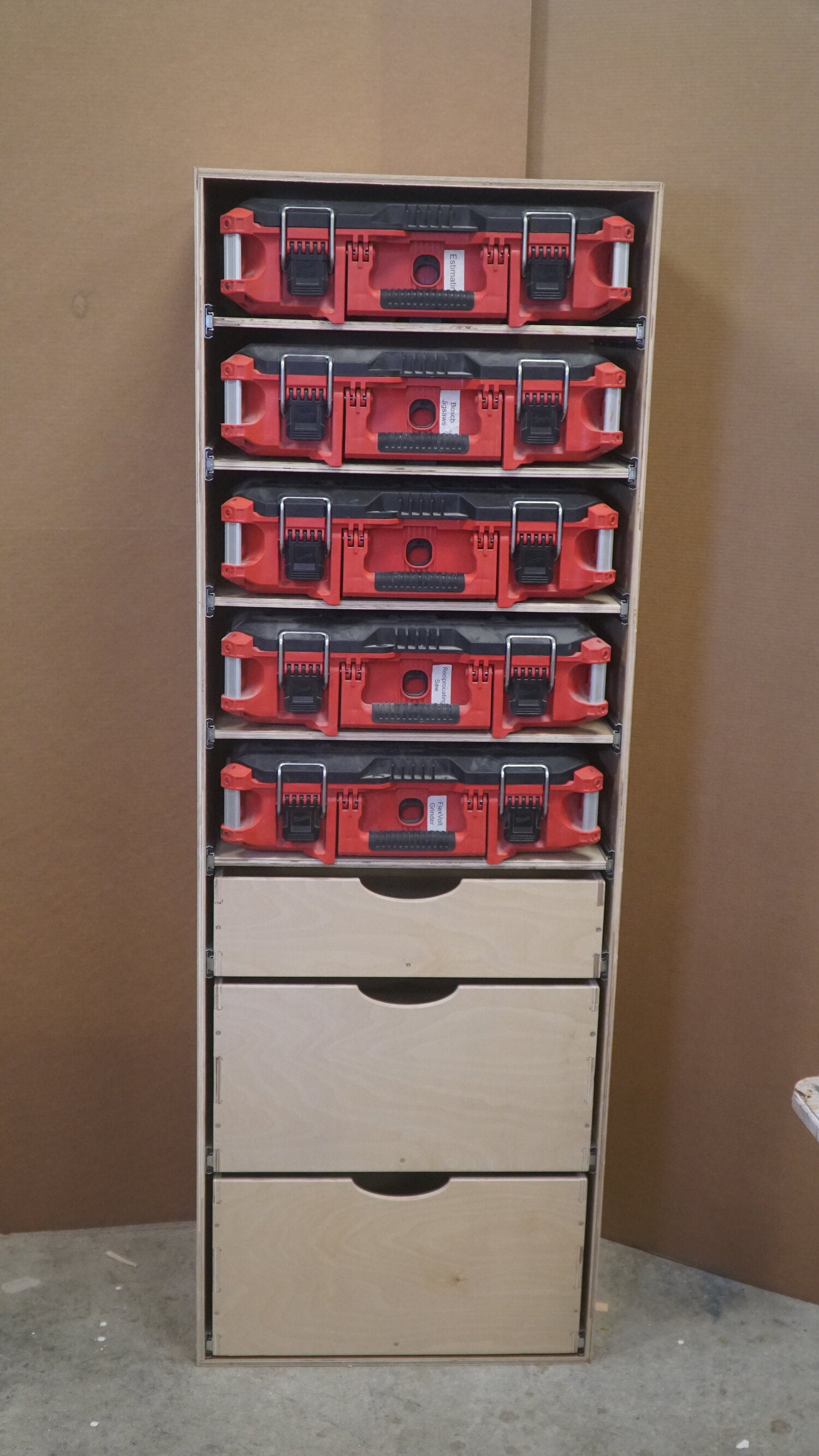

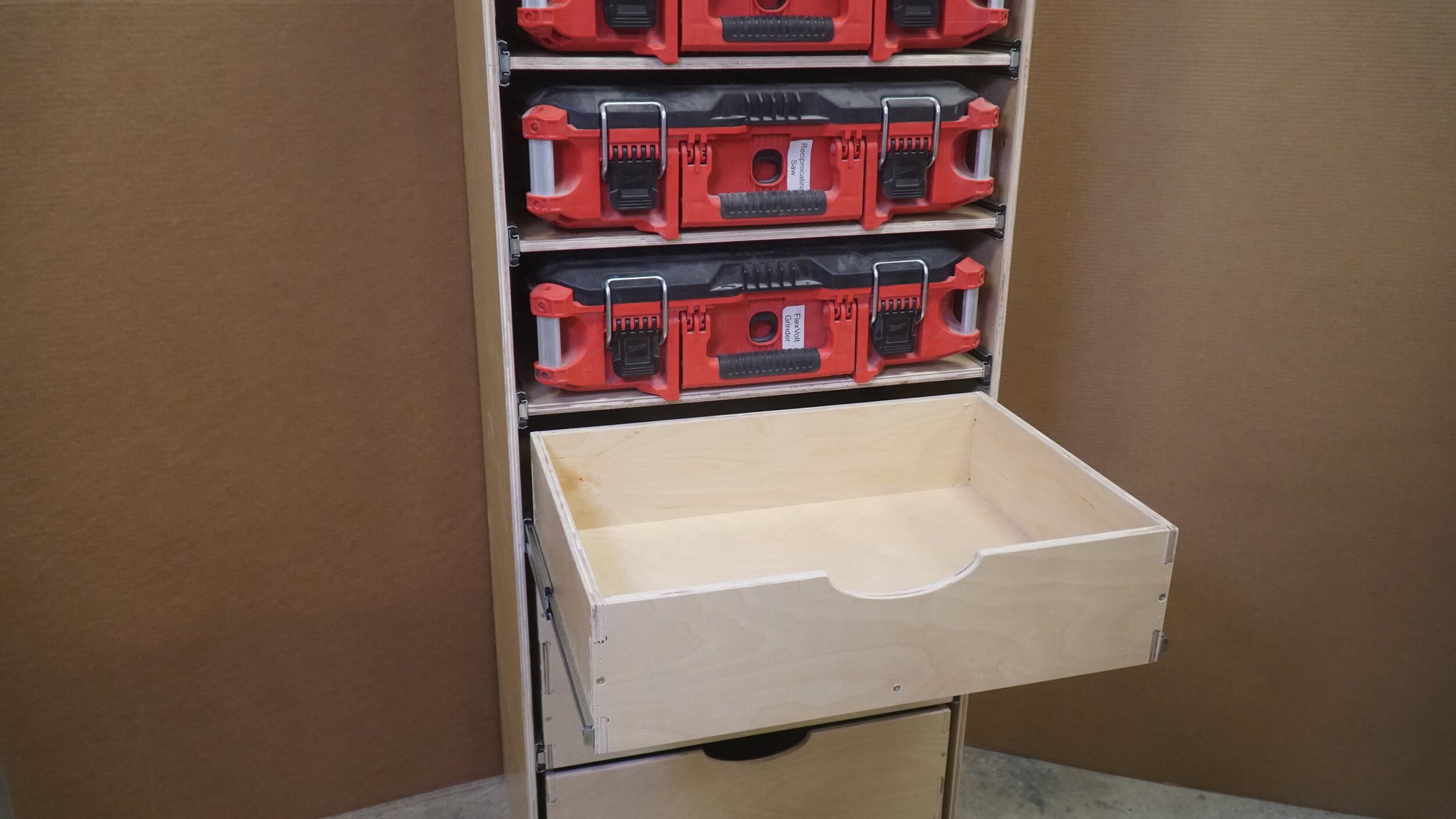

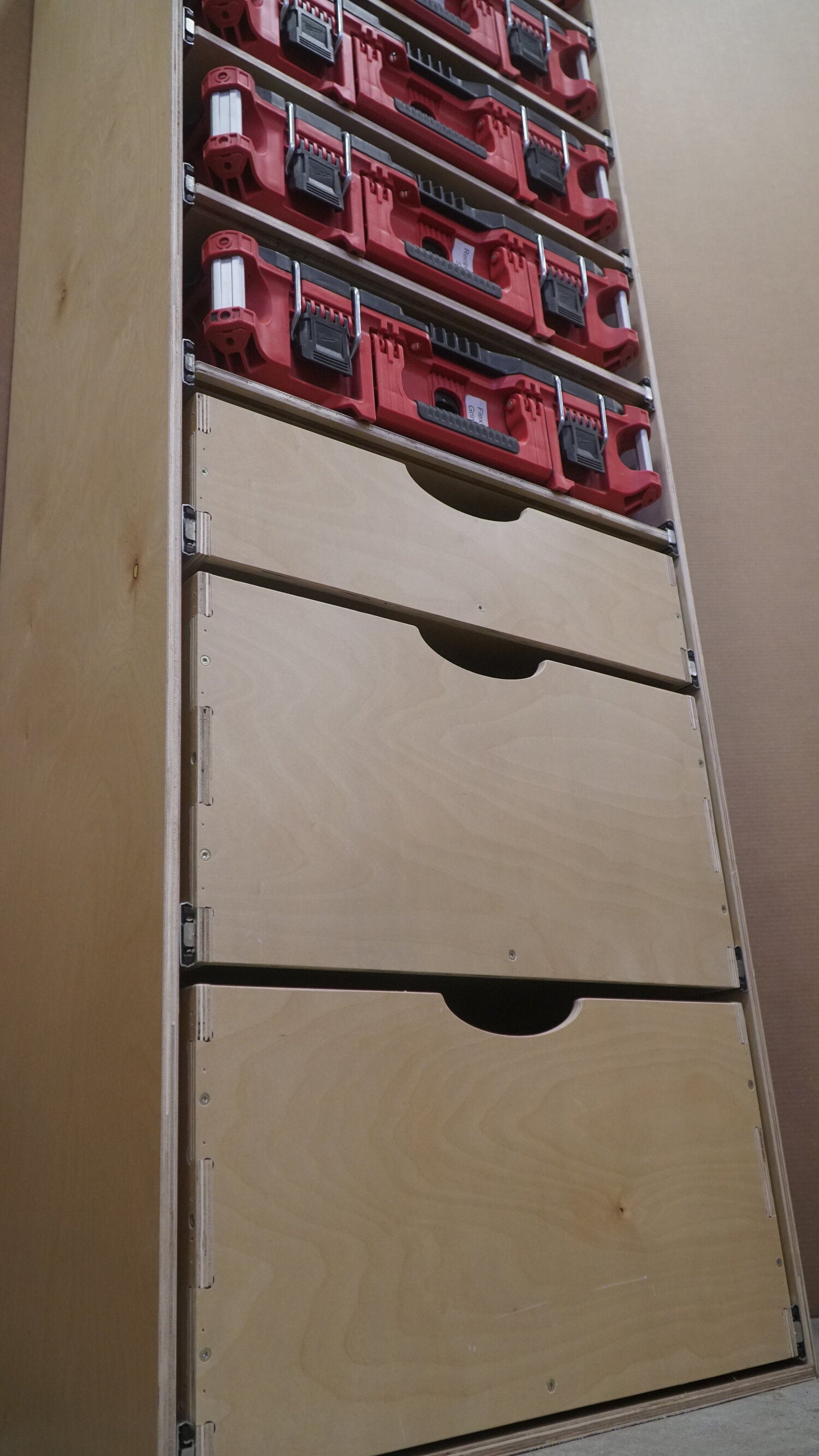

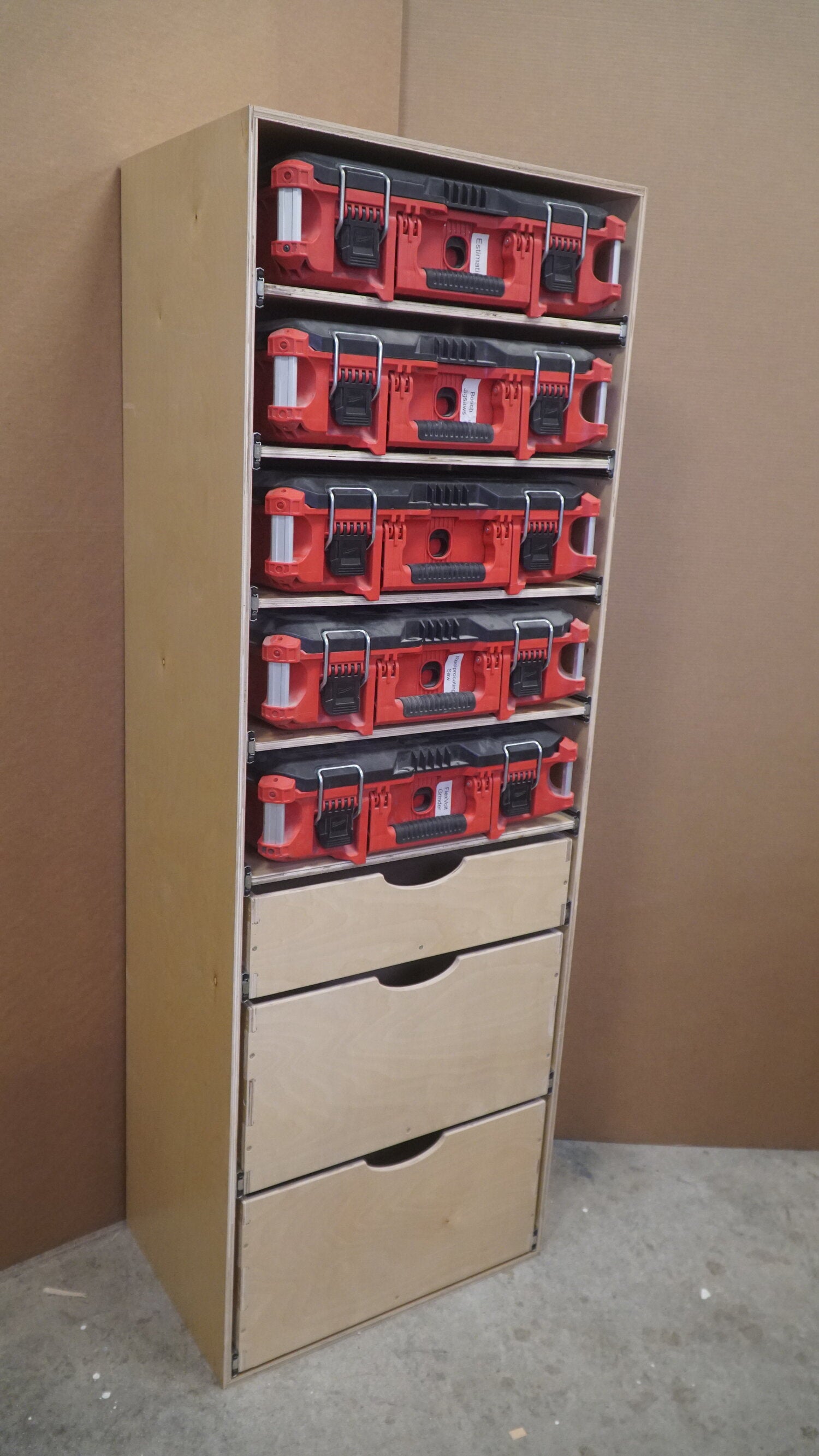

This unit is for a single tower with three drawers and 5 plates. One 6-inch drawer and two 12-inch drawers.

Internal Drawer Dimensions:

6-inch drawer: 6" tall x 15" deep x 21-7/8" wide

12-inch drawers: 12" tall x 15" deep x 21-7/8"wide*

*The 12-inch drawers will come with dividers that can be installed if you desire.

The standard unit dimensions are:

71" high x 24-13/16" wide x 17" deep

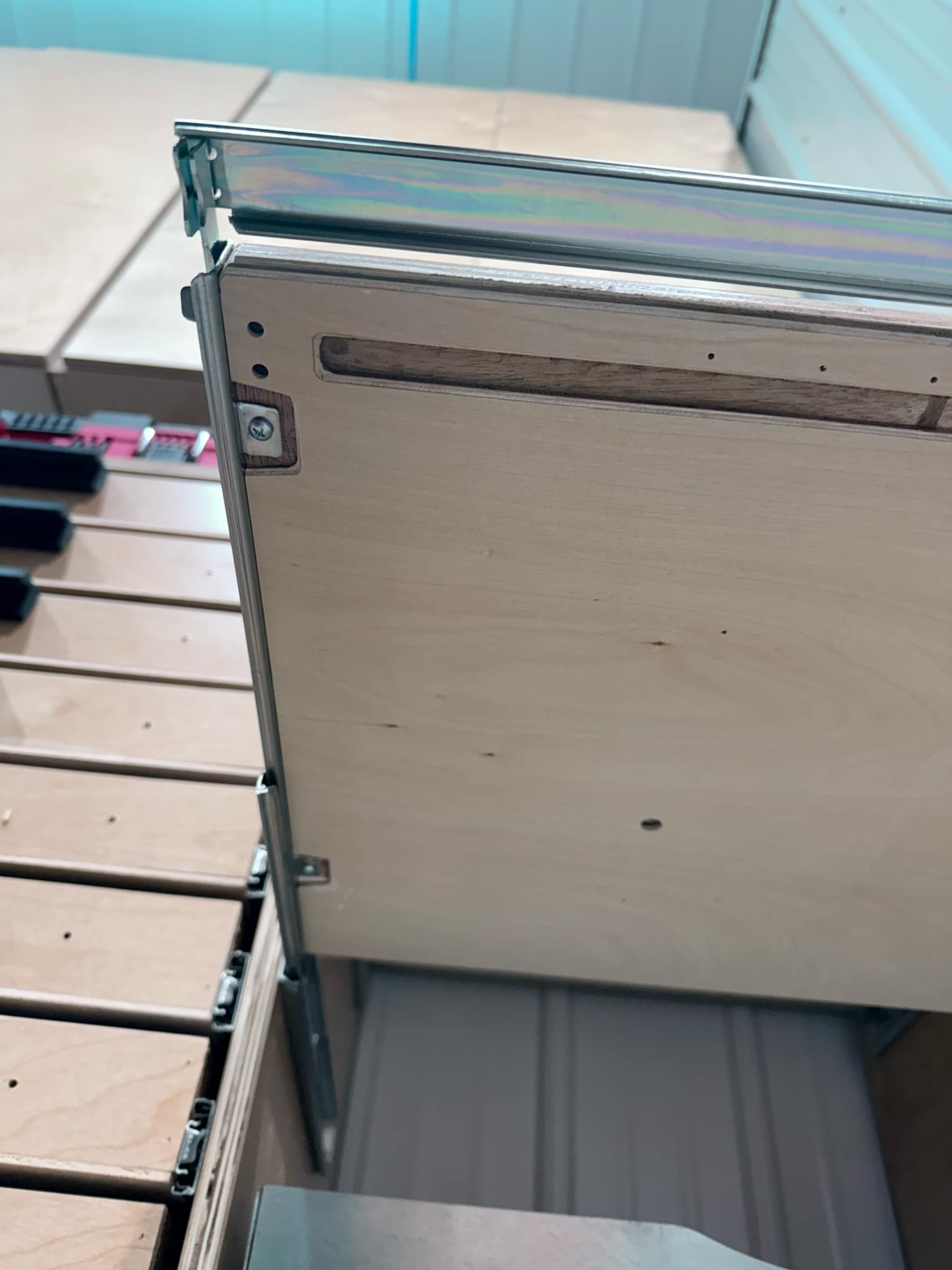

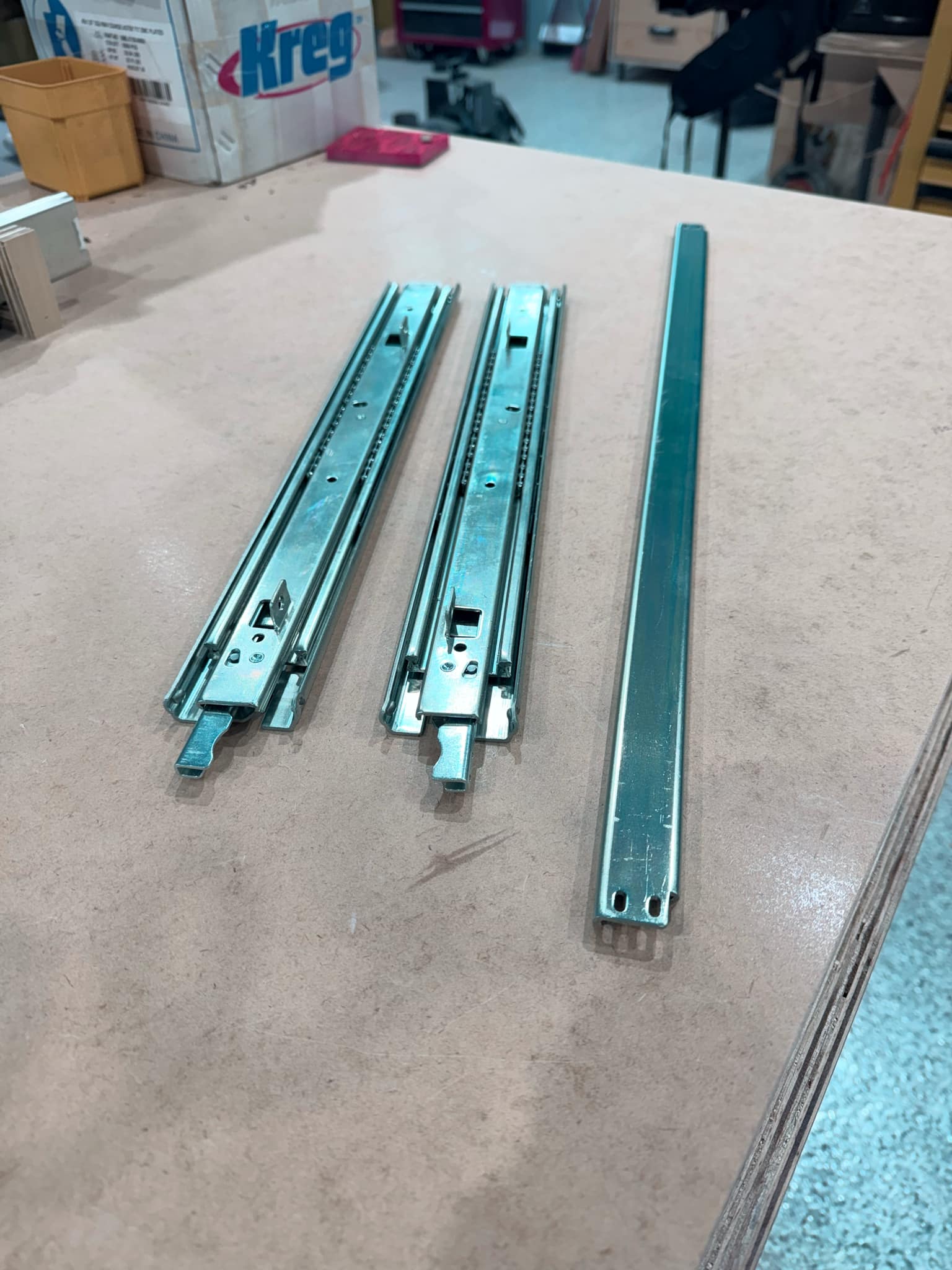

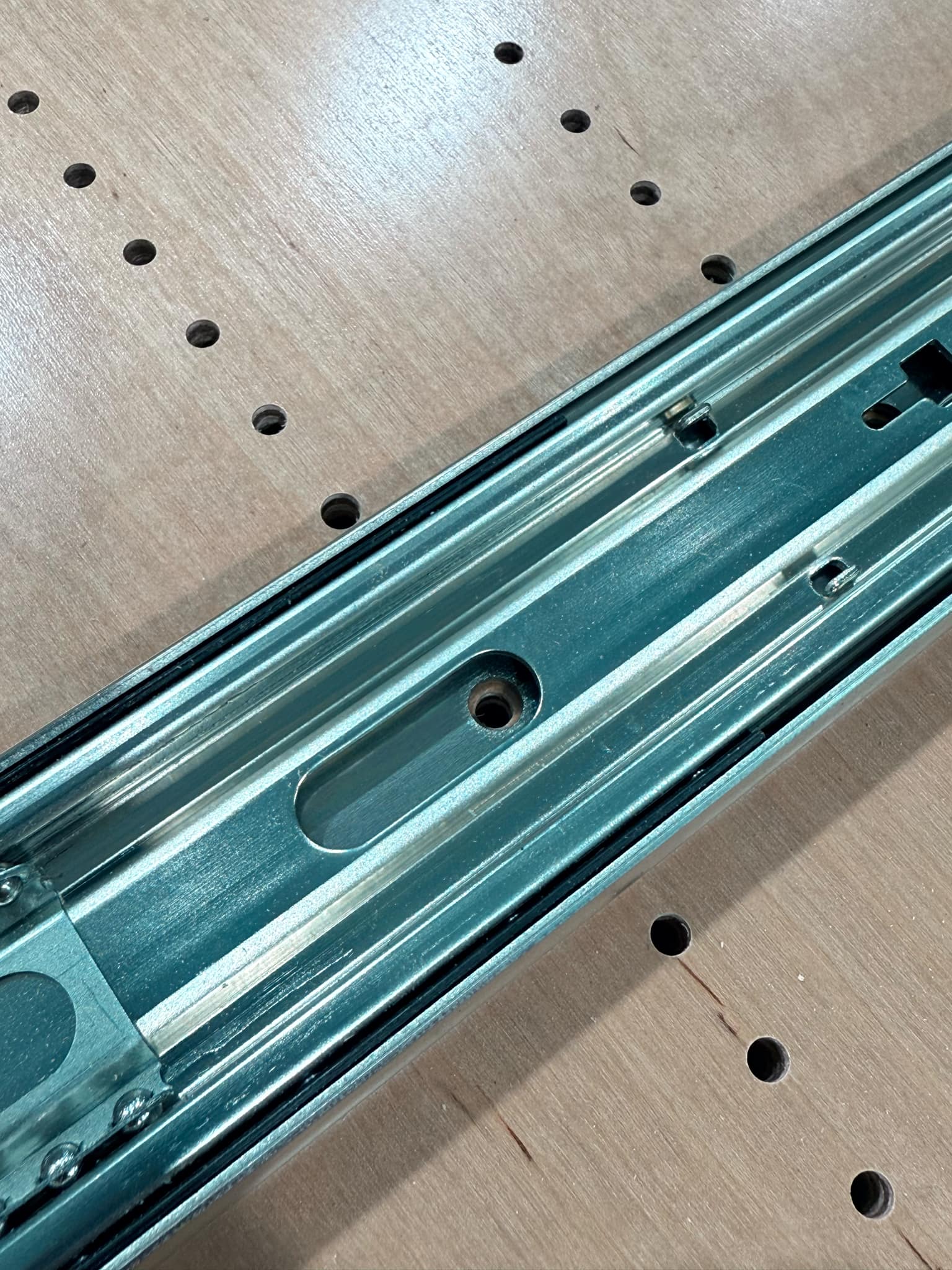

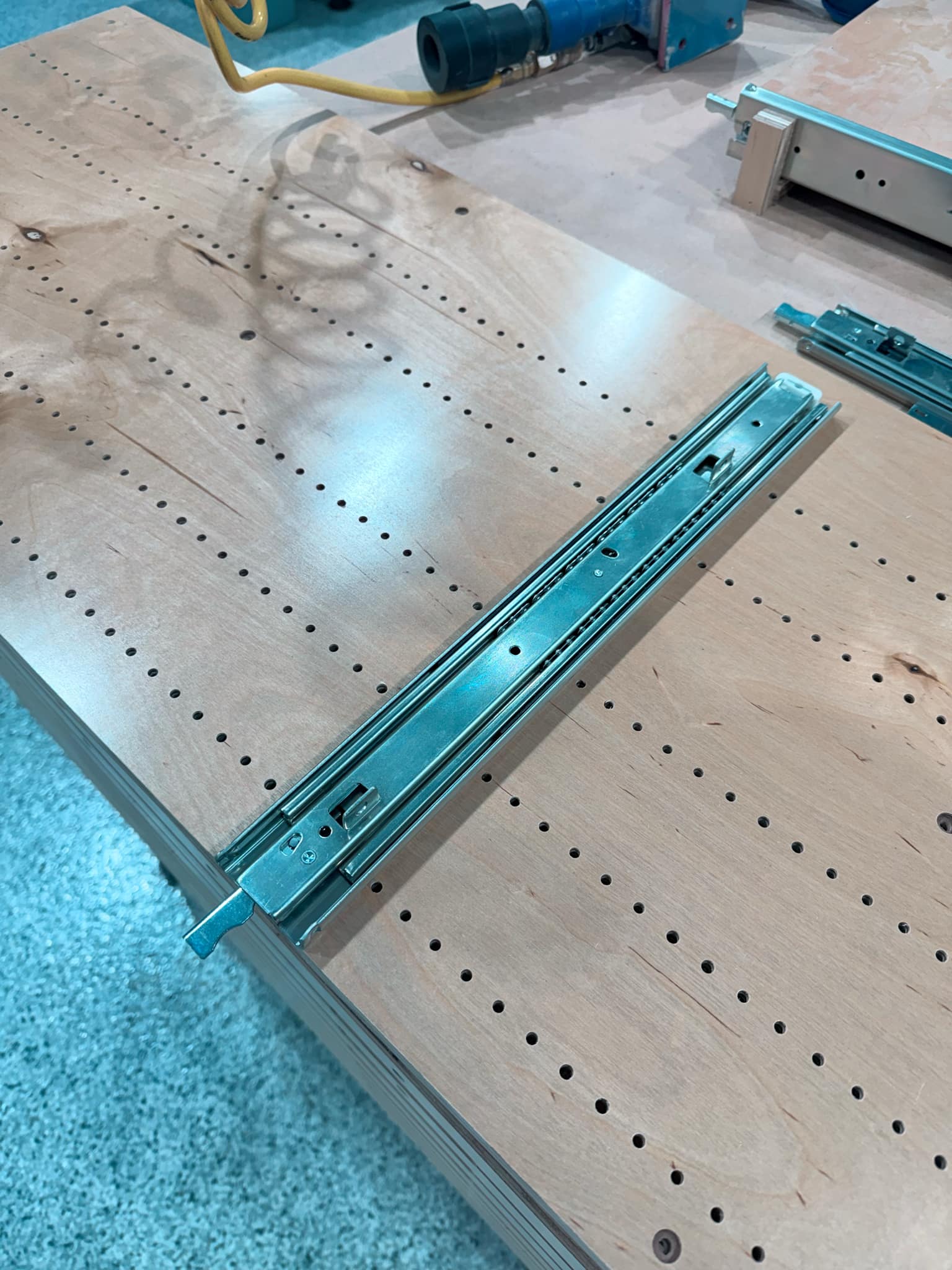

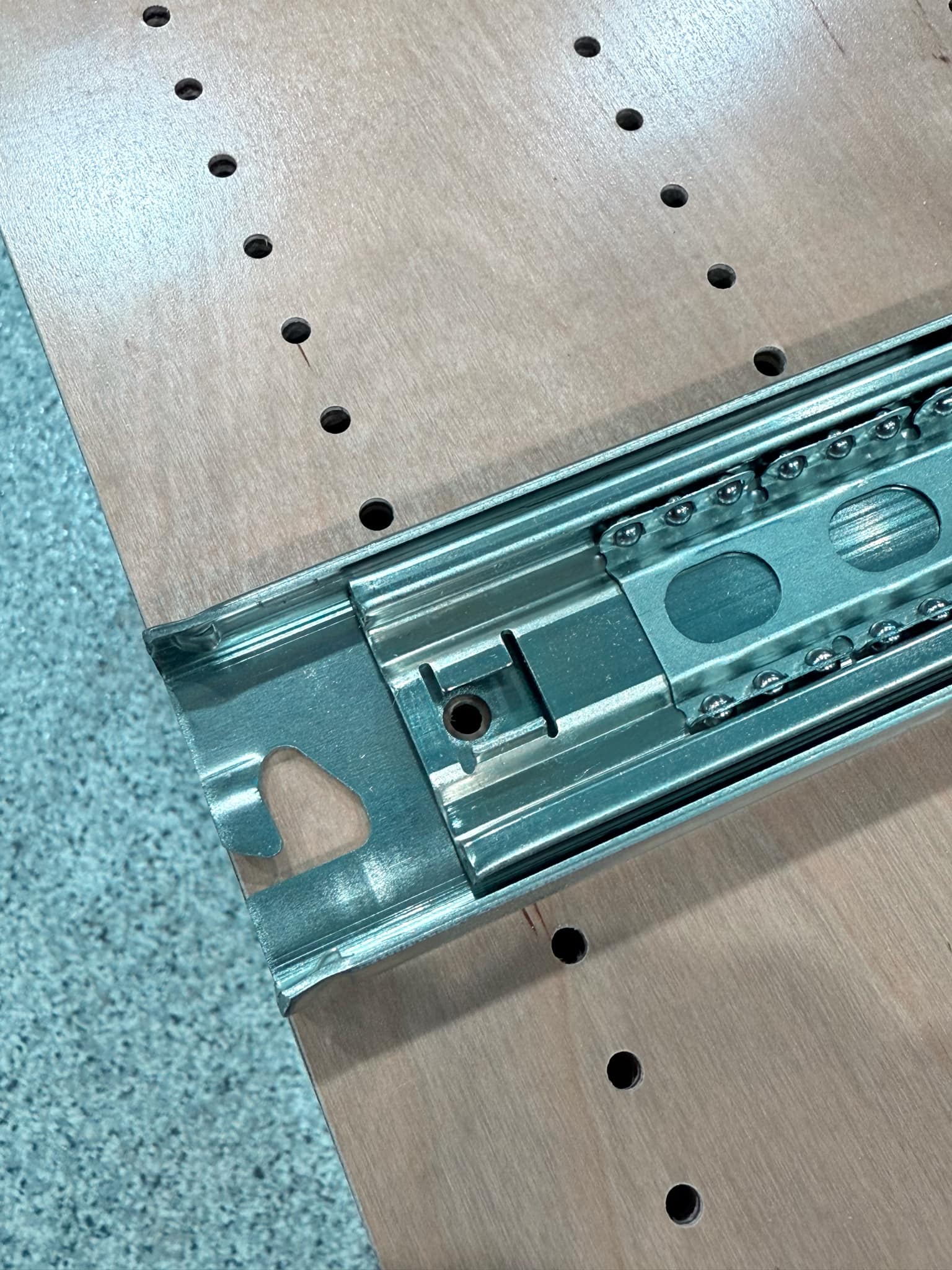

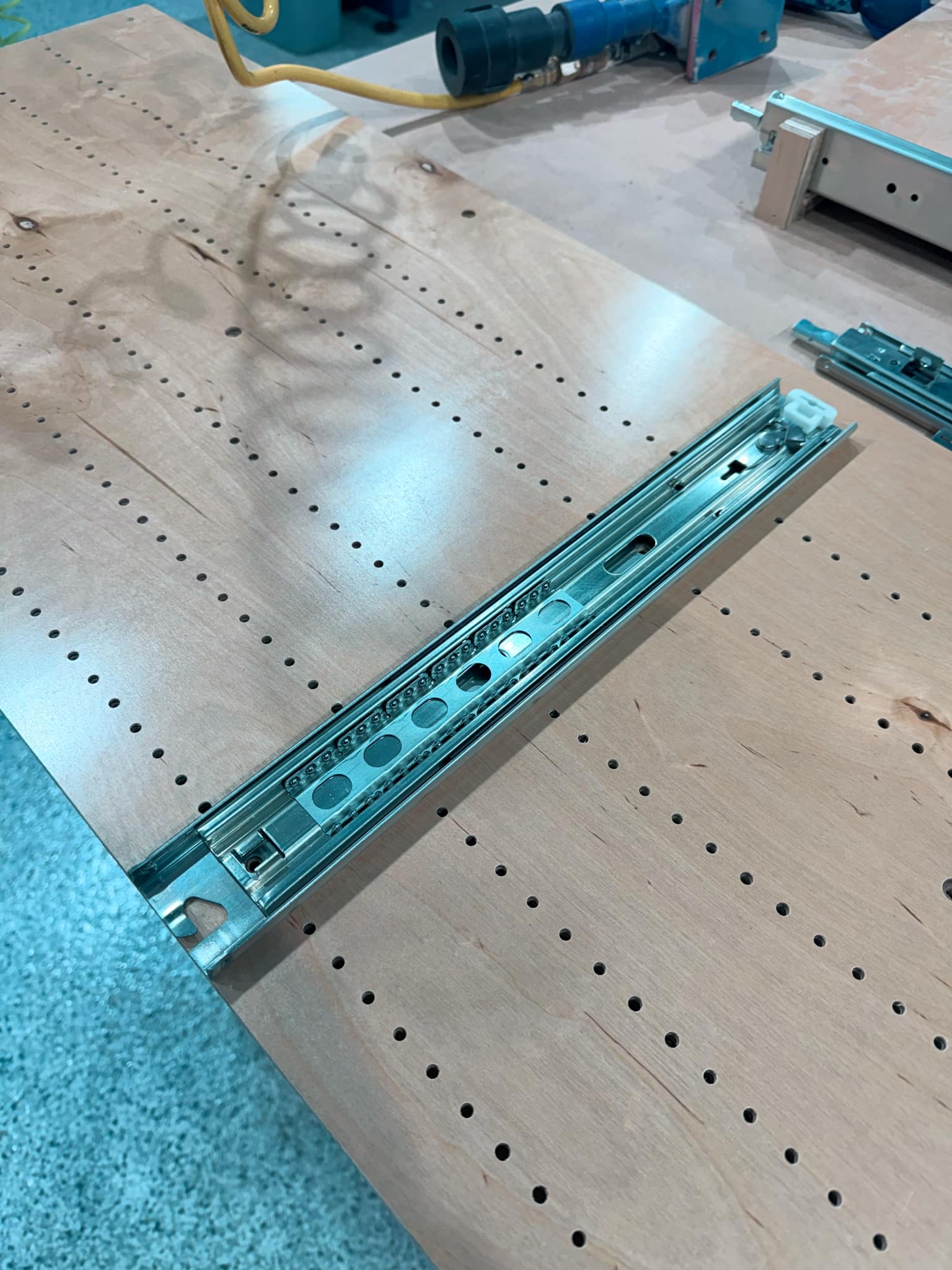

Assemble the drawers following the Drawer QR code on the packing sheet. Attached the drawer slide ot the cabinet case with the 5mm system screws and the drawer slide half to the drawer slide with the wood screws.

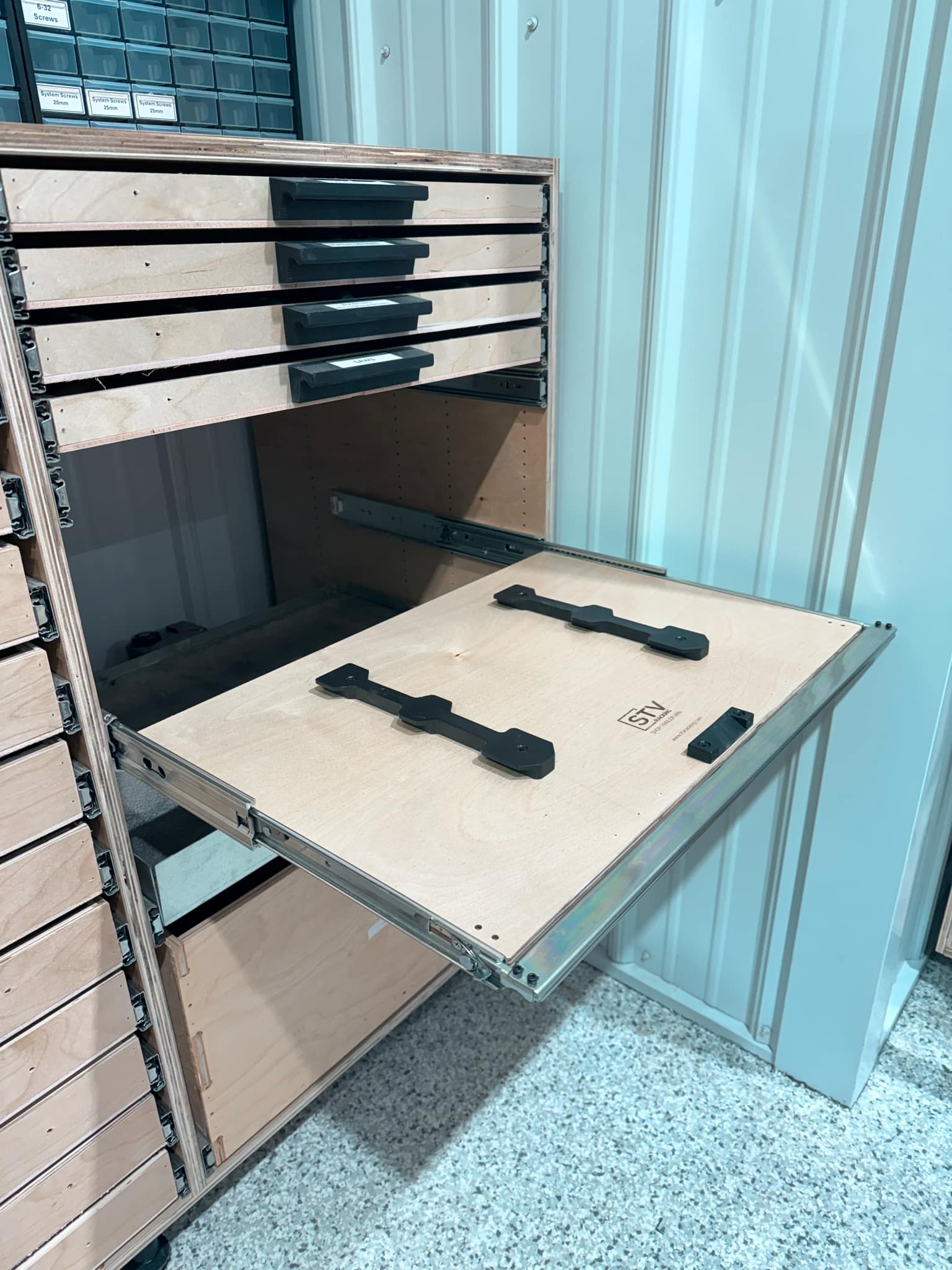

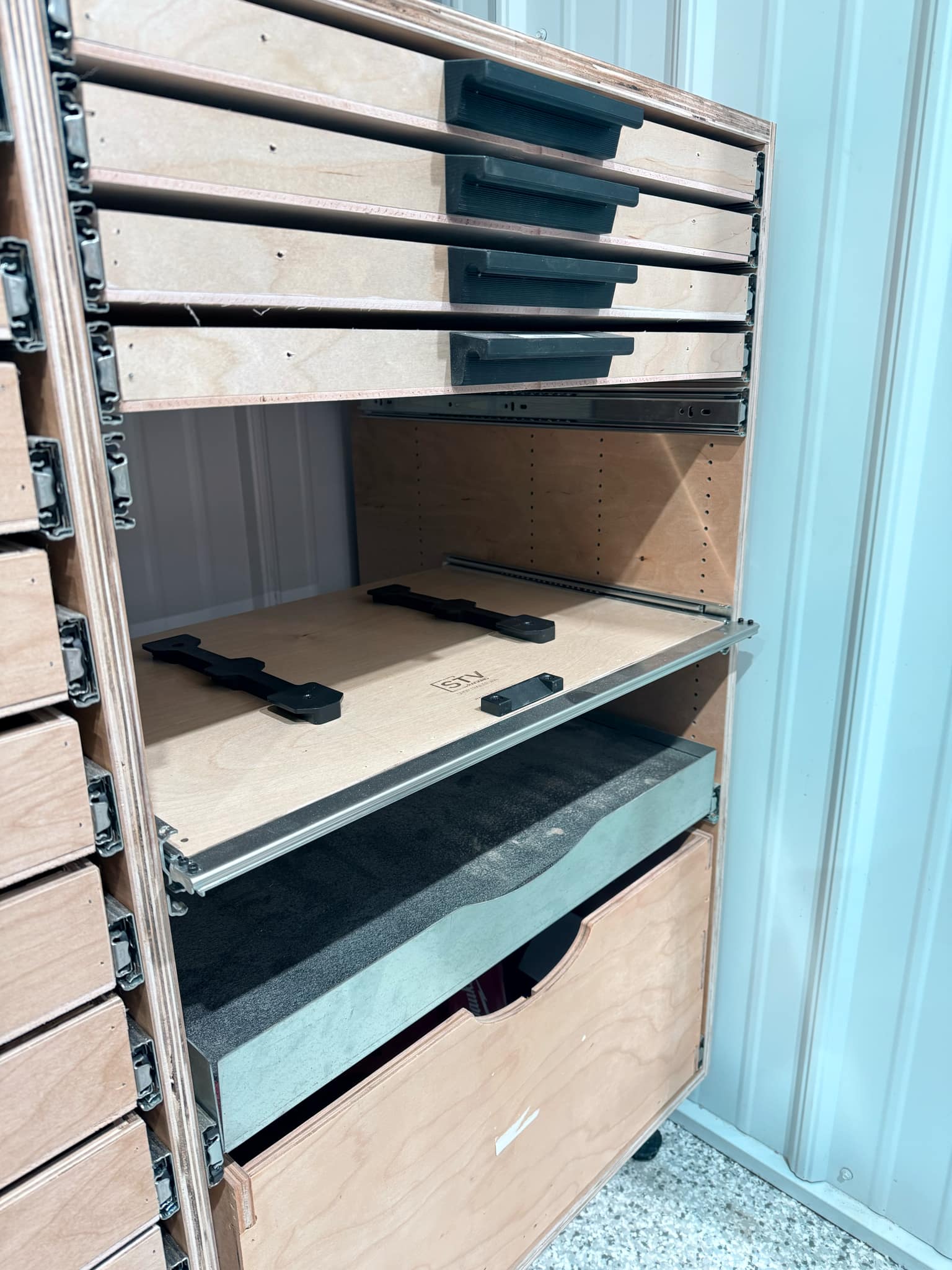

The drawer plates are designed and manufactured with pockets to securely hold your tool organizers in place. Or if you are a Milwaukee Packout owner, you can use our Torpedo Dock to completely secure your tool organizer to the tray of the STV Racking. (CURRENTLY NOT PICTURED)

DISCLAIMER

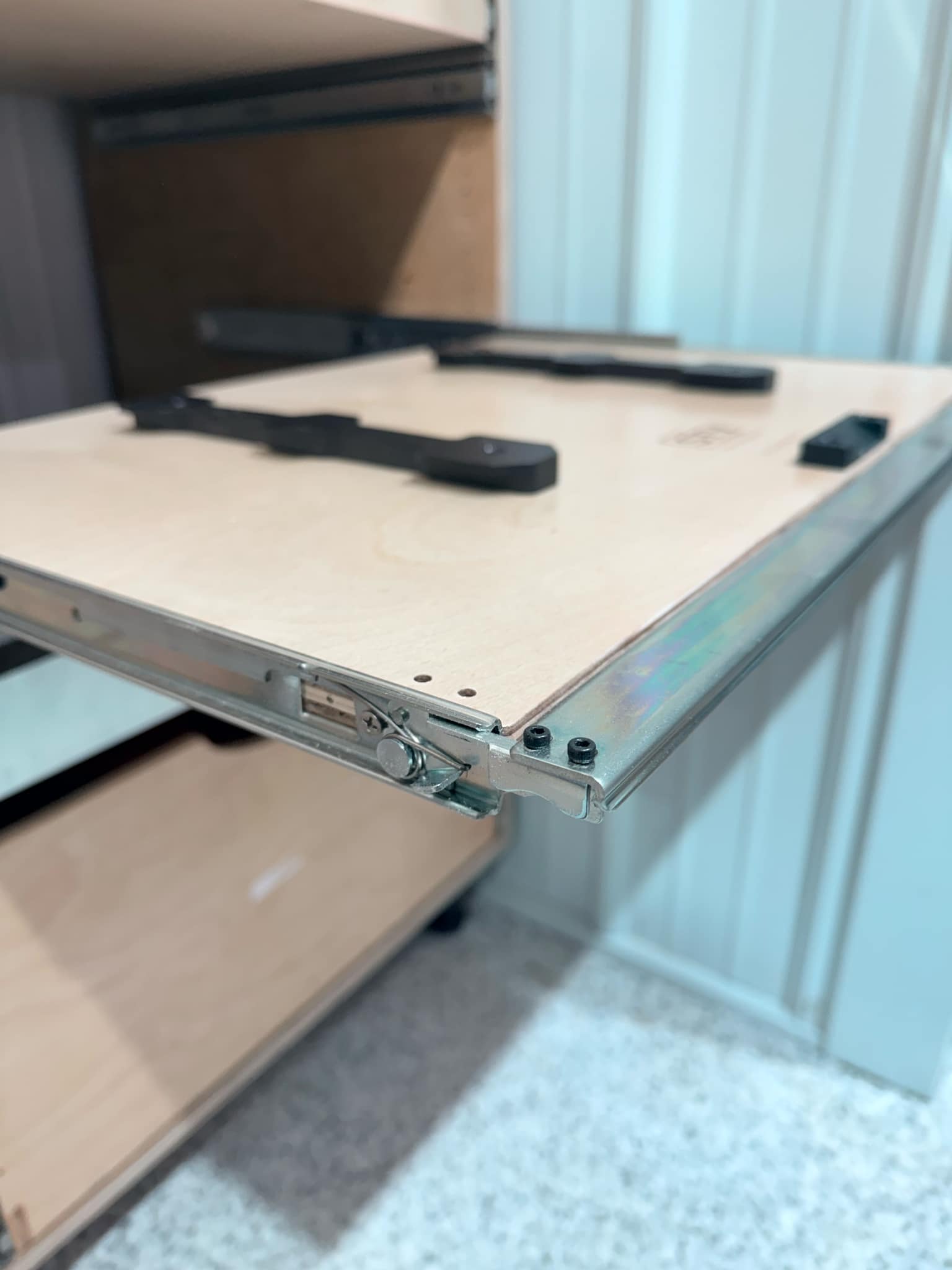

Install the Shark-Loc mechanism to the trays following the Shark-Loc QR code on the packing sheet. (CURRENTLY NOT PICTURED)

DISCLAIMER

TOOL CONTAINERS AND ANYTHING ELSE SEEN IN THE PICTURES ARE NOT INCLUDED.

THIS ITEM IS FOR THE PLYWOOD RACKING TOWER, PLATES/TRAYS, DRAWERS, AND DRAWER SLIDES.
